Spherical Bushings: Versatile Bearings for Smooth Motion and Load Support

Introduction

In the world of mechanical engineering and industrial applications, bearings play a crucial role in facilitating smooth and efficient motion while supporting heavy loads. Spherical bushings, also known as spherical plain bearings, are versatile components that excel in providing rotational and oscillating motion in a wide range of applications. In this blog, we will delve into the features and benefits of spherical bushings and explore their importance in various industries.

1. Flexible Range of Motion

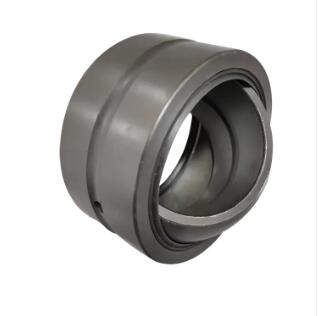

Spherical bushings offer a flexible range of motion, allowing for rotational and oscillating movements in machinery and equipment. Their design consists of an inner ring with a spherical surface and an outer ring with a corresponding concave shape. This construction allows the bushing to accommodate misalignment, making it suitable for applications where there is angular misalignment or shaft deflection. The spherical shape enables smooth and low-friction motion in multiple directions, ensuring efficient performance even in challenging operating conditions.

2. Load Support and High Load Capacity

One of the primary functions of spherical bushings is to provide load support, especially in heavy-duty applications. These bearings are designed to handle radial, axial, and combination loads, making them ideal for machinery subjected to high forces. The spherical shape and large contact area of the bushings distribute the load evenly, reducing stress on individual components and improving overall load-carrying capacity. This ability to support heavy loads makes spherical bushings invaluable in industries such as construction, mining, agriculture, and automotive manufacturing.

3. Self-Lubricating and Maintenance-Free Operation

Spherical bushings often come with self-lubricating properties, minimizing the need for regular maintenance and lubrication. They are typically made from materials such as steel and bronze, which incorporate a layer of self-lubricating material like PTFE (polytetrafluoroethylene) or other synthetic polymers. This self-lubrication feature reduces friction and wear between the bearing surfaces, resulting in smoother operation and extended service life. The self-lubricating capability of spherical bushings also contributes to their suitability for applications in harsh environments or hard-to-reach locations where maintenance is challenging.

4. Resistance to Contamination and Harsh Conditions

Spherical bushings are designed to withstand challenging operating conditions and resist contamination. The materials used in their construction provide excellent resistance to moisture, dirt, dust, and other contaminants that can compromise the performance of the bearing. This durability makes spherical bushings well-suited for outdoor applications, as well as industries that involve exposure to harsh elements, including marine, construction, and mining.

5. Versatility and Application Range

The versatility of spherical bushings allows for a wide range of applications across various industries. They are commonly used in machinery and equipment such as agricultural machinery, construction equipment, automotive components, and industrial automation systems. Spherical bushings find application in steering linkages, suspension systems, hydraulic cylinders, robotic arms, and many other mechanical systems where rotational or oscillating motion is required. Their adaptability and performance make them an essential component in ensuring smooth and reliable operation in numerous industrial processes.

Conclusion

Spherical bushings offer a versatile and reliable solution for facilitating smooth motion and supporting heavy loads in a range of industrial applications. With their flexible range of motion, high load capacity, self-lubricating properties, and resistance to contamination and harsh conditions, spherical bushings contribute to the efficient and reliable operation of machinery and equipment. From construction and agriculture to automotive and industrial automation, these bearings play a crucial role in ensuring smooth and precise motion. Embrace the benefits of spherical bushings and experience enhanced performance and longevity in your mechanical systems.
